car inverter with display off grid 12v 24v to ac 110v 220v 300w 600w 800w 1000w modified sine wave inverter
Product Description
Modificate Sine Wave Inverter Specification
| DC to AC Power Inverter Model |
300W 500W 600W 800W 1000W 1200W 1500W 2000W 2500W 3000W |
|
| Output | Output Waveform | Modificate Sine Wave |
| Output Frequency | 50Hz / 60Hz | |
| Output Voltage | 220V / 110V AC | |
| Input | Input Voltage | 12V DC |
| Voltage Range | 10V~15V DC | |
| Low Volt Alarm | 10V±0.2V DC | |
| Low Volt Shutdown | 9.5V±0.2V DC | |
| Over Volt Alarm | 15.5V DC | |
| Protection Function | Low Volt Alarm/Shutdown,
Overload,Over Voltage/Temp Shutdown, Automatic Short-circuit Shutdown, Reverse Polarity Protection |
|
| Efficiency | 88% | |
| Input Terminals | Red, Black Cables With Separated Terminals | |

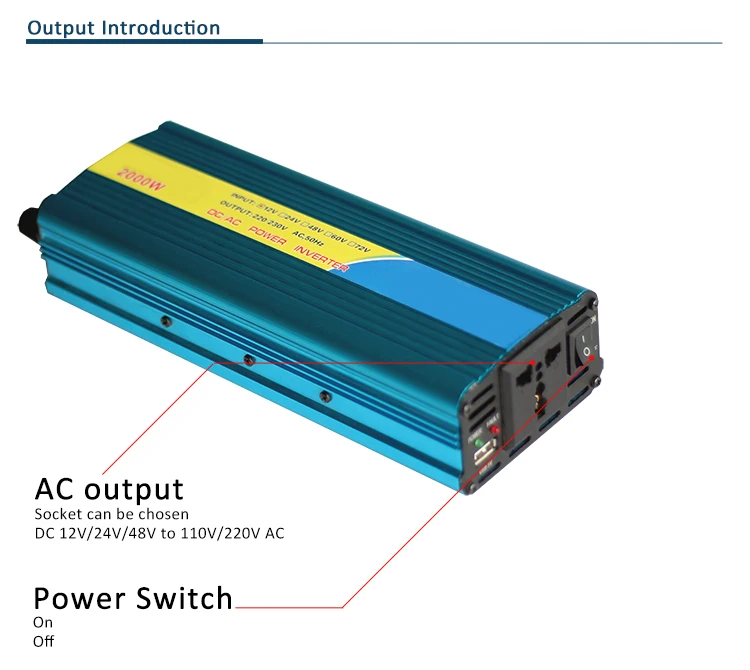

| Output Terminals | Output Socket / Outlet | |
| Working Temperature Range | -10℃ to +50℃ | |
| Working Humidity Range | 20%~90%RH Non-Condensing | |
| Storage Temperature Range | -30℃ to +70℃ | |
| Cooling Way | Fan-Cooling Automatically | |
