220V 230V 5.6Kva 5600W Off Grid Inverter MPPT 48Vdc Battery Solar 100A AC Charger Pure Sine Wave Inverter
Product Main Features
* Pure sine wave solar inverter
* Output power factor 1
* High PV input voltage range.
* Built-in MPPT solar controller
* Battery equalization function to optimize battery performance and extend lifecycle
* Inverter running without battery
* Built-in anti-dusk kit for harsh environment

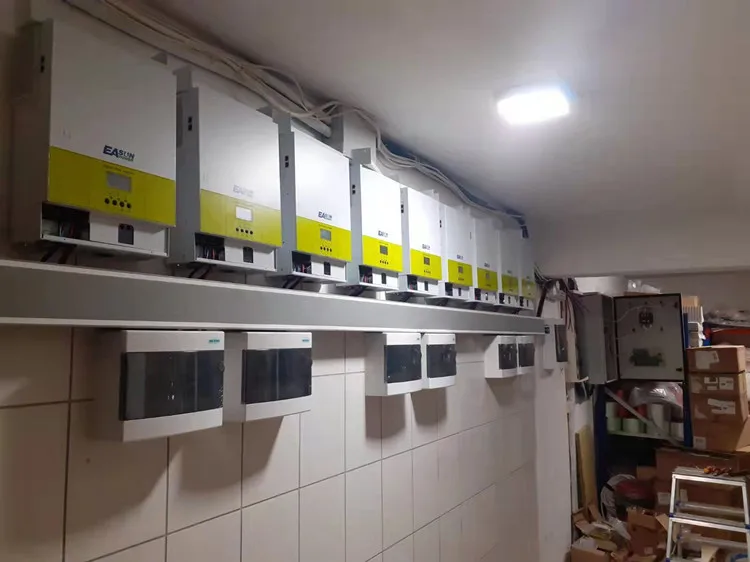

* Parallel operation with up to 9 units for 5.6kw
* WIFI / GPRS remote monitorning

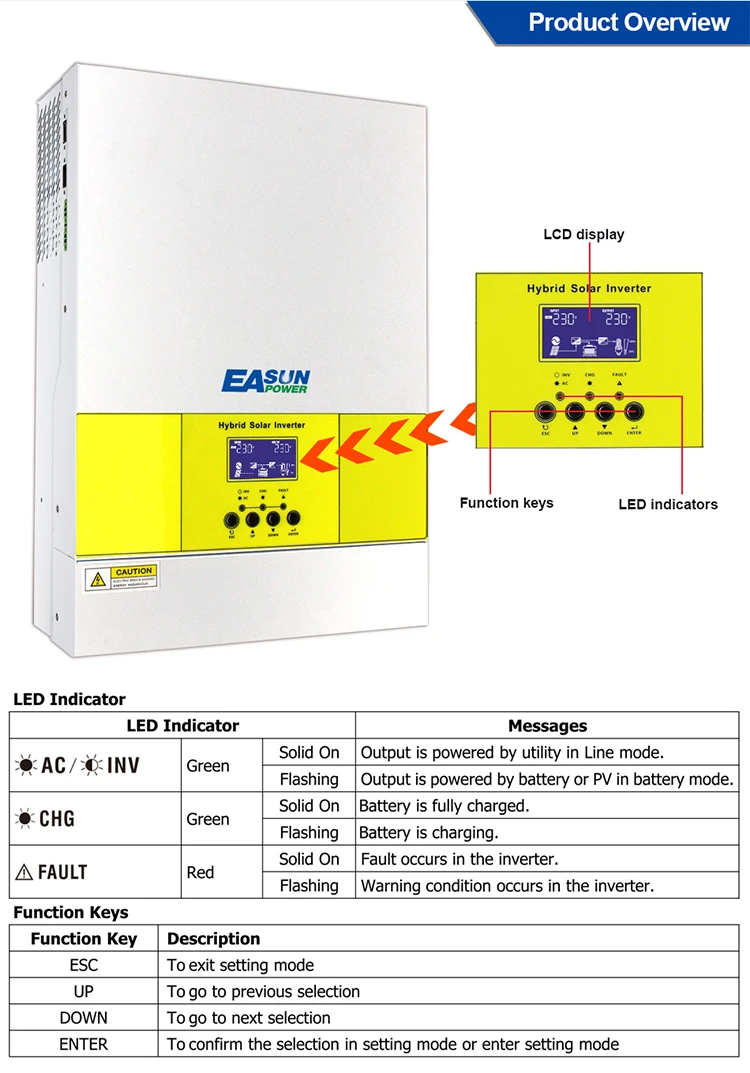

* Detachable LCD ( optional )
Specification
|
MODEL
|
ISolar SMG II 3.6KW
|
ISolar SMG II 5.6KW
|
||
|
CAPACITY
|
3.6KVA/3.6KW
|
5.6KVA/5.6KW
|
||
|
Parallel Capability
|
NO
|
Yes
|
||
|
INPUT
|
||||
|
Nominal Voltage
|
230VAC
|
|||
|
Acceptable Voltage Range
|
170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
|
|||
|
Frequency
|
50/60Hz(Auto sensing)
|
|||
|
OUTPUT
|
||||
|
Nominal Voltage
|
220/230VAC±5%
|
|||
|
Surge Power
|
7000VA
|
11000VA
|
||
|
Frequency
|
50/60Hz
|
|||
|
Waveform
|
Pure Sine wave
|
|||
|
Transfer Time
|
10Ms(For personal Computer);20Ms(For Home Appliances)
|
|||
|
Peak Efficiency(PV to INV)
|
96%
|
|||
|
Peak Efficiency(Battery to INV)
|
93%
|
|||
|
Overload Protection
|
5s@>=150%load;10s@110%-150%load
|
|||
|
Crest Factor
|
3:1
|
|||
|
Admissible Power Factor
|
0.6-1(inductive or capacitive)
|
|||
|

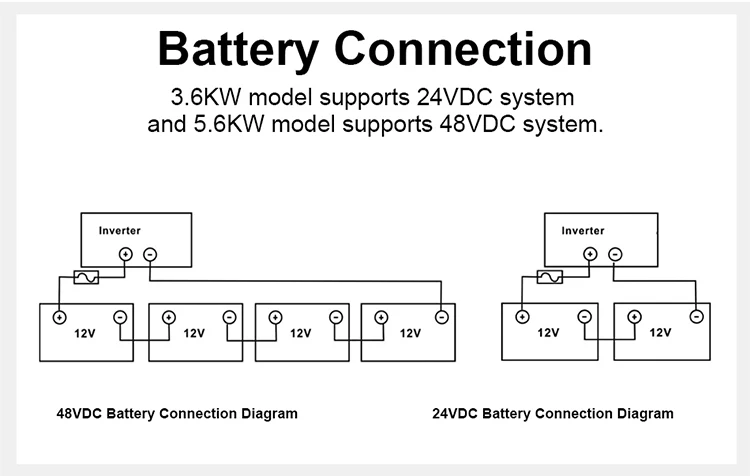

BATTERY
|
||||
|
Battery Voltage
|
24VDC
|
48VDC
|
||
|
Floating harge Voltage
|
27VDC
|
54VDC
|
||
|
OverCharge Protection
|
33VDC
|
63VDC
|
||
|
Charging Method
|
CC/CV
|
|||
|
Solar Charger&AC Charger
|
||||
|
Solar Charger TYPE
|
MPPT
|
|||
|
Max.PV Array power
|
4000W
|
5500W
|
||
|
Max.PV Array Open Circuit Voltage
|
500VDC
|
|||
|
PV Array MPPT Voltage Range
|
120VDC-450VDC
|
|||
|
Max.Solar lnput Current
|
15A
|
18A
|
||
|
Max.Solar Charge Current
|
100A
|
100A
|
||
|
Max.AC Charge Current
|
60A
|
60A
|
||
|
Max.Charge Current
|
100A
|
100A
|
||
|
PHYSICAL
|
||||
|
Net Weight(Kgs)
|
9
|
10
|
||
|

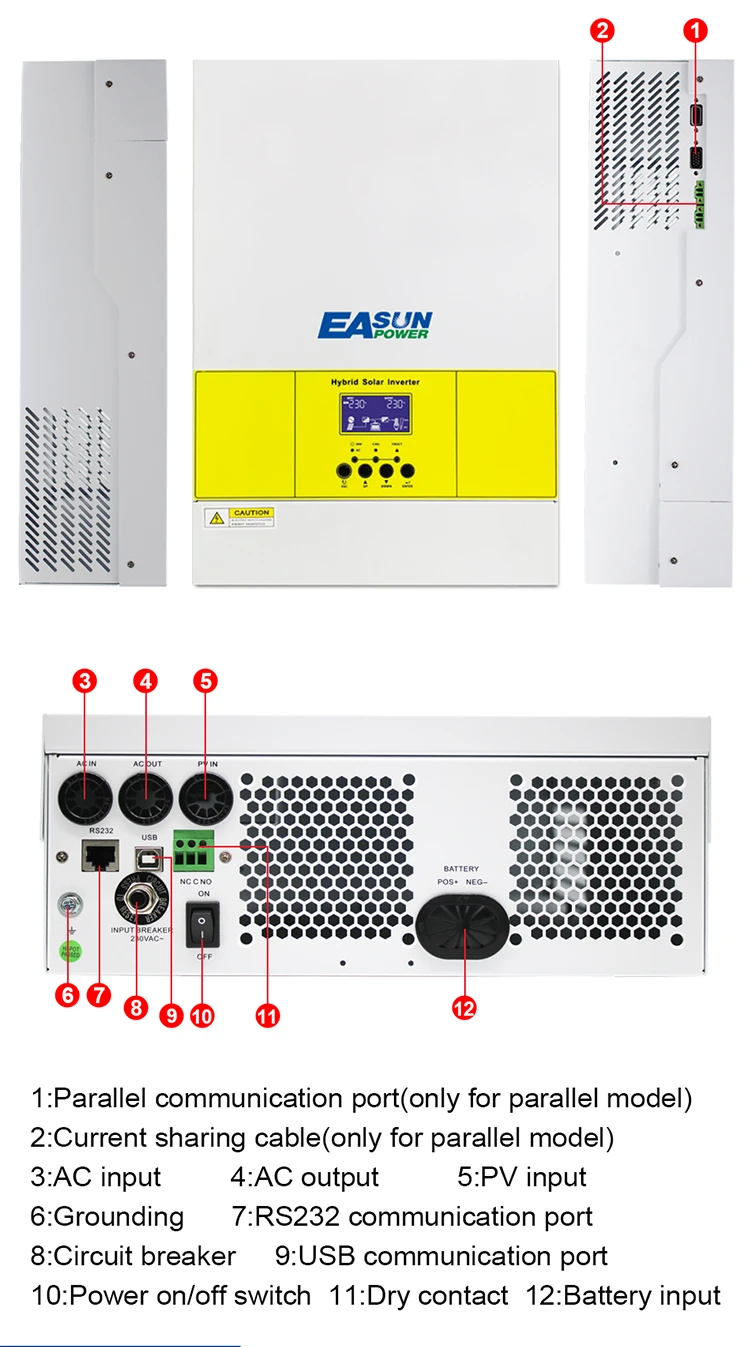

Communication lnterface
|
USB/RS232/Dry-contact
|
|||
