Product Description
Product overview
*Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave

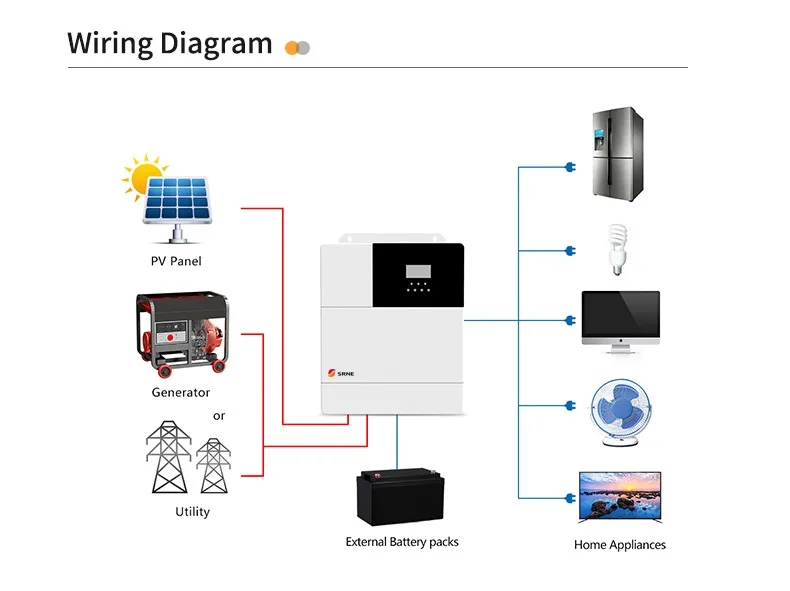

*Two output modes: mains bypass and inverter output; uninterrupted power supply.
*Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
*Advanced MPPT technology with an efficiency of 99.9%.
|
Place of Origin
|
China
|
|
Output Voltage
|
110V/120V
|
|
Output Frequency
|
50Hz/ 60Hz
|
|
Size
|
378*280*103mm
|
|
Inverter Efficiency
|
>95%
|
|
Warranty
|
18 months
|
|
Brand Name
|
SRNE
|
|
Output voltage waveform
|
Pure sine wave
|
|
Certificate
|
CE(IEC/EN62109-1,-2)、ROHS2.0、ETL
|
|
Rated power
|
3000w
|
|
Color
|
White
|
|
AC charge current
|
80A
|
|
PV charge current
|
60A
|
|

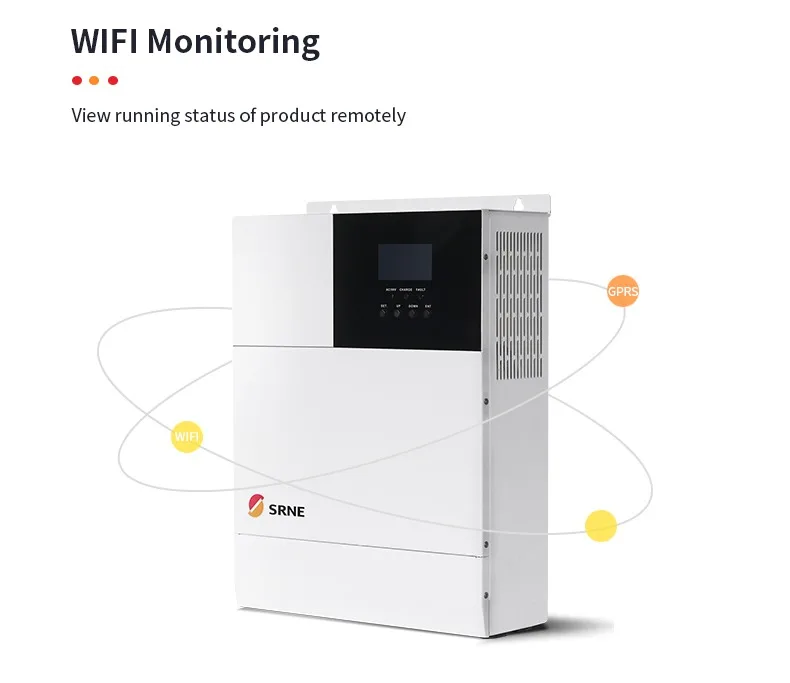

Wifi function
|
support
|
|
Maximum PV open circuit voltage
|
100V
|
|
Battery type
|
Lead acid or lithium battery
|
|
Weight
|
6.2kg
|
