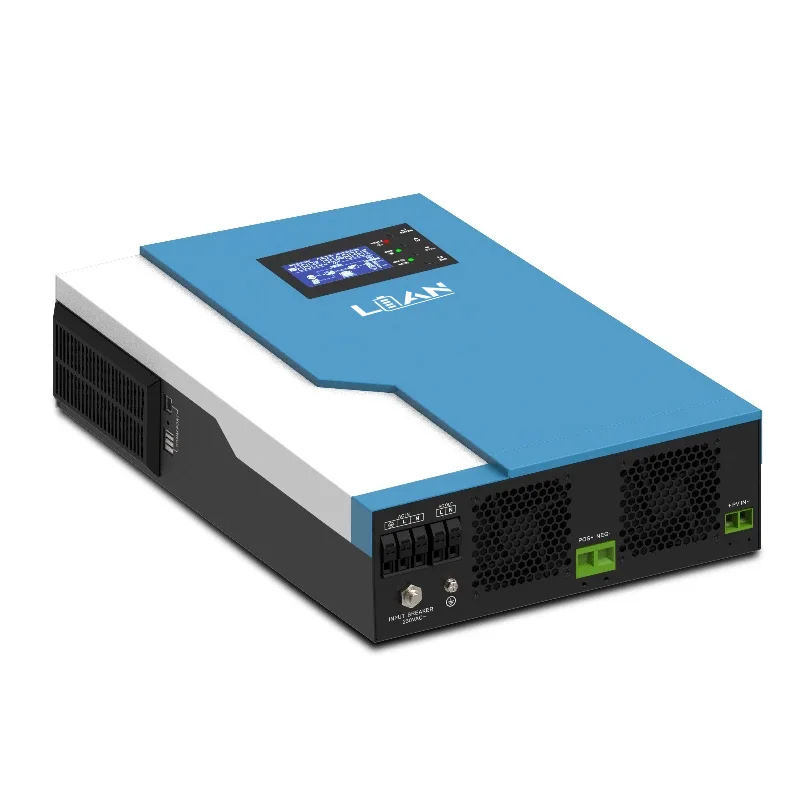

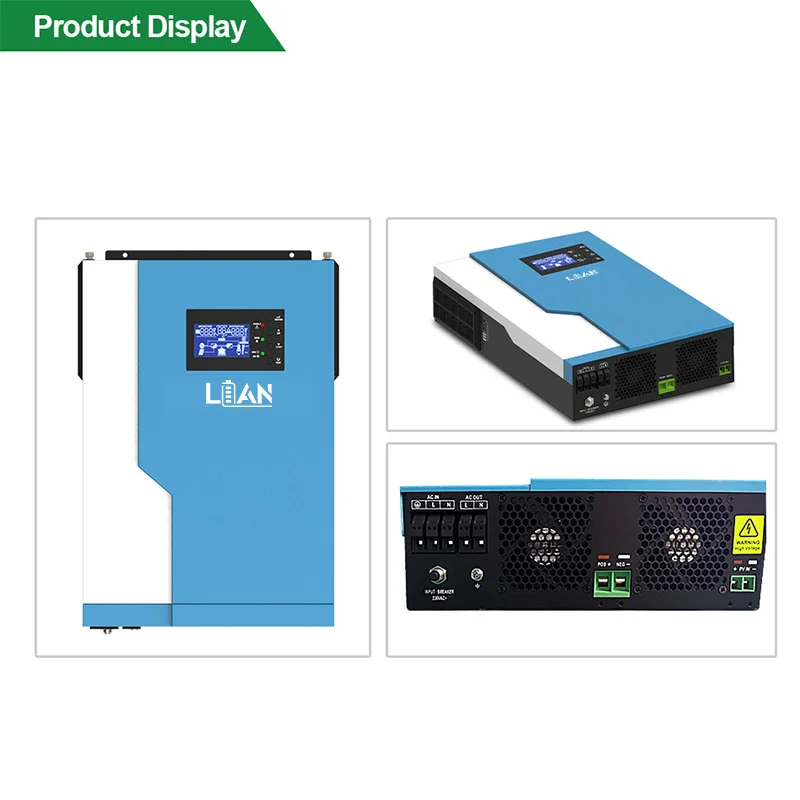

Product Description
Main Features:
* Pure sine wave solar inverter
* Output power factor 1
* High PV input voltage range.
* Built-in MPPT solar controller * Battery equalization function to optimize battery performance and extend lifecycle
* Inverter running without battery
* Built-in anti-dusk kit for harsh environment
* Parallel operation with up to 9 units , support parallel in 1 phase / 3 phase, support wireless parallel * Support multiple

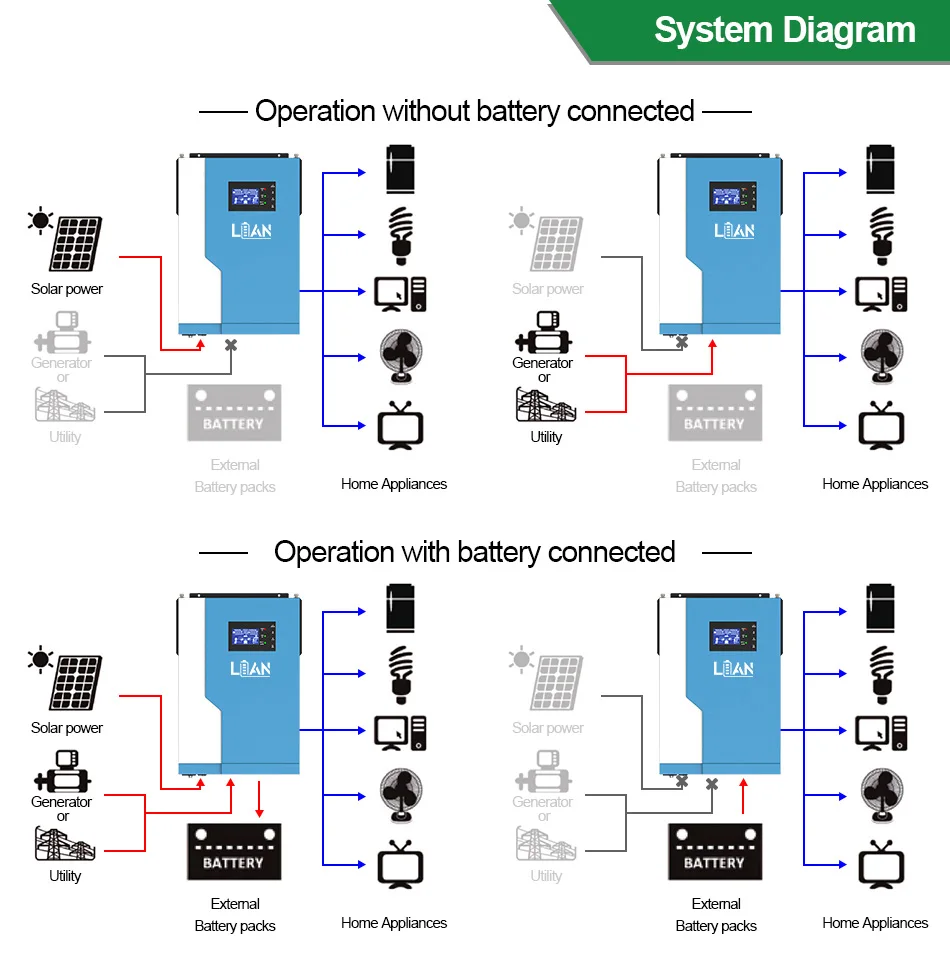

output priority: UTL, SOL, SBU, SUB

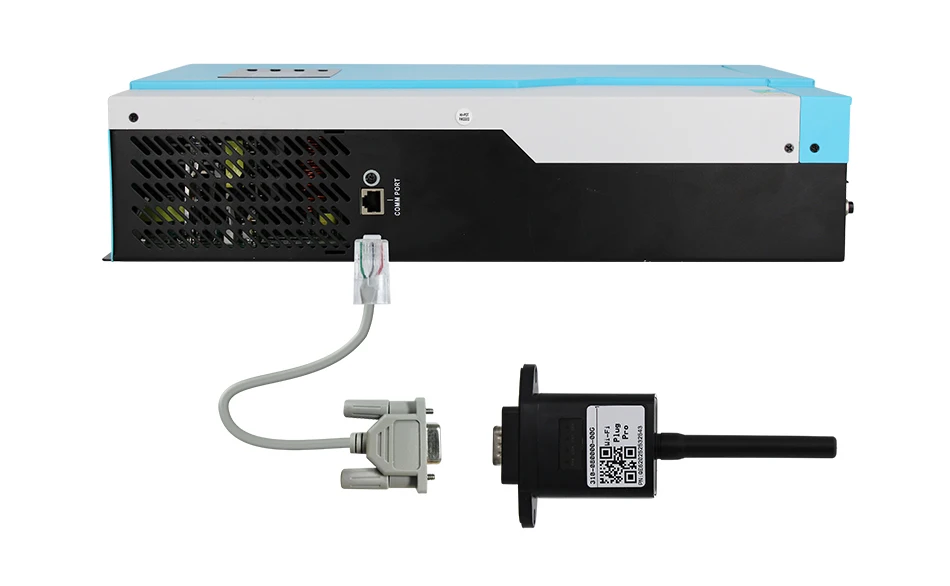

* WIFI / GPRS remote monitorning ( Optional)
* RS485 Communication for BMS ( Optional )
* Self consumption and Feed-in to grid ( optional )
|

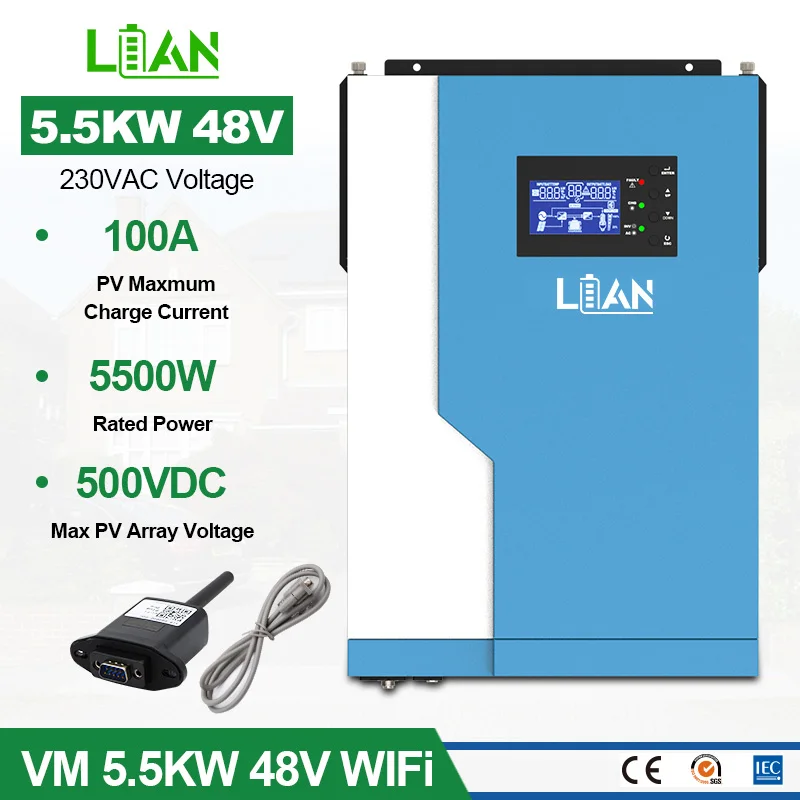

Model
|
VM-3500W
|
VM-5500W
|
|
|
Rated Power
|
3500VA/3500W
|
5500VA/5500W
|
|
|
Input
|
|||
|
Voltage
|
230VAC
|
||
|
Selectable Voltage Range
|
170～280VAC(For Personal Computers)
|
||
|
90～280VAC(For Home Appliances)
|
|||
|
Frequency Range
|
50Hz/60Hz(Auto sensing)
|
||
|
Output
|
|||
|
AC Voltage Regulation(Batt.Mode)
|
230VAC±5%
|
||
|
Surge Power
|
7000VA
|
11000VA
|
|
|
Efficienc(Peak)PV to INV
|
97%
|
||
|
Efficienc(Peak)Battery to INV
|
94%
|
||
|
Transfer Time
|
10ms(For Pensonal Computers);20ms(For Home Appliances
|
||
|
Battery & AC Charger
|
|||
|
Battery Voltage
|
24VDC
|
48VDC
|
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
|
Overcharge Protection
|
33VDC
|
63VDC
|
|
|
Maximum Charge Current
|
80A
|
80A
|
|
|
Solar Charger
|
|||
|
Maximum PV Array Power
|
5000W
|
6000W
|
|
|
MPPT Range @ Operating Voltage
|
120～450VDC
|
||
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
||
|
Maximum Charging Current
|
100A
|
100A
|
|
|
Maximum Efficiency
|
98%
|
||
|
Physical
|
|||
|
Dimension,D*W*H(mm)
|
100*300*440
|
||
|
Net Weight(kgs)
|
11
|
12
|
|
|
Communication Interface
|
WIFI
|
||
|
Operating Environment
|
|||
|
Mumidity
|
5% to 95% Relative Humidity(Non～condensing)
|
||
|
Operating Temperature
|
0℃～55℃
|
||
|
Storage Temperature
|
-15℃～60℃
|
||
