Product Description

1. High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -500V dc) 150A MPPT SCC;Intelligent 3stage 150A AC battery charger.Pure sine wave.

2.Built-in MPPT solar charge controlller Configurable solar input voltage up to 500V Maximum



3.Configurable input voltage range for home appliances and personal computers via LCD setting



4.Configurable battery charging current based on applications via LCD setting Configurable AC/Solar



5.Charger priority via LCD setting Compatible to mains voltage or generator power Auto restart while

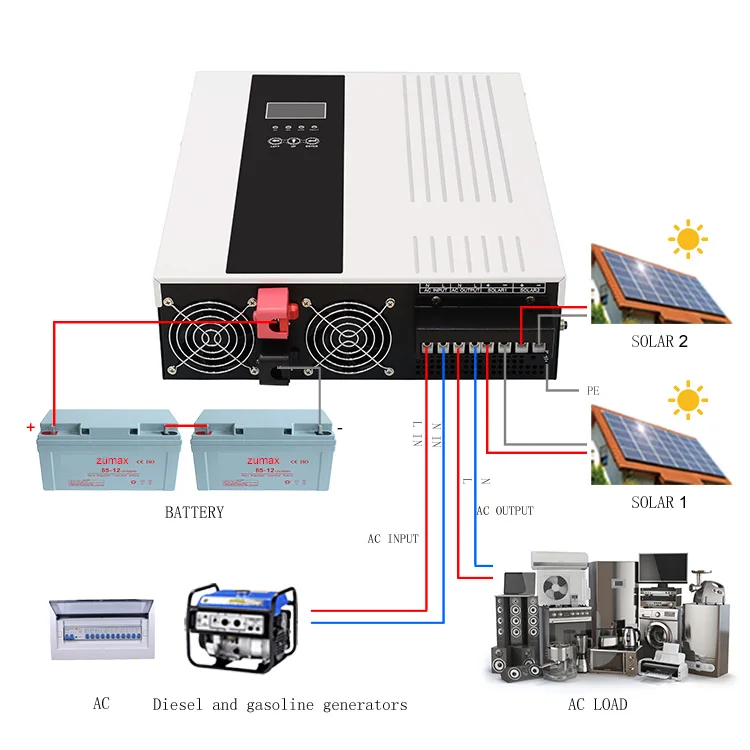

6.AC or Solar is recovering Capable working without battery connection Capable suppling power to



7.AC output with solar and utility at same time Capable suppling AC output with solar input only



8.Overload/ Over temperature/ short circuit protection.

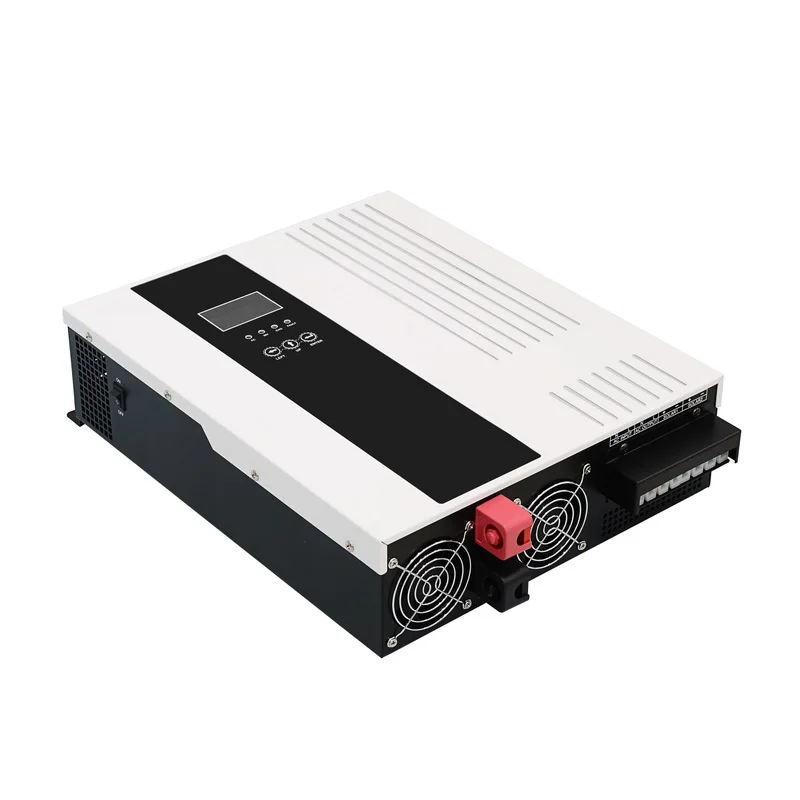

ZUMAX HP-T 1~7.2KWK  Product Parameters
Specification
Model: ZUMAX HP-T			1KW	1.5KW	3.2KW	5KW	7.2KW
Peak Power(20ms)			3000VA	4500VA	9600VA	15KVA	21.6KVA
Battery Voltage			12VDC	24VDC	24VDC	48VDC	48VDC

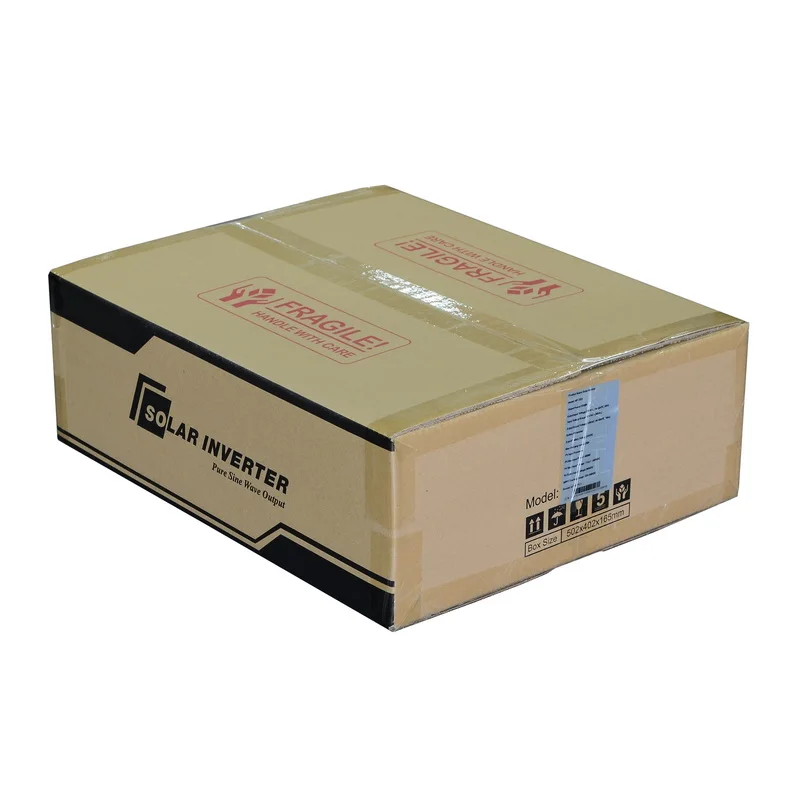

Package Size(L*W*Hmm)			459x347x152		502x410x168		561x457x172
G.W(Kg)			8	8	12.5	12.8	17.5
	MPPT tracking voltage range		120V-450V
	Max PV Input Voltage Voc (At the lowest temperature)		500V
	PV Array Maximum Power		2000W	2000W	4000W	6000W	4500W*2
	MPPT tracking channels (input channels)		1				2
Input	DC Input Voltage Range		10.5VDC-15VDC	21VDC-30VDC		42VDC-60VDC
	Rated AC input voltage		230VAC
	AC Input Voltage Range		170~280VAC (UPS mode)/ 120~280VAC(INV mode)
	AC Input Frequency Range		45~65Hz
Output	Output efficiency(Battery/PV Mode)		94%(Peak value)
	Output Voltage(Battery/PV Mode)		230VAC±2%
	Output Frequency(Battery/PV Mode)		50Hz±0.5 or 60Hz±0.5
	Output Wave(Battery/PV Mode)		Pure Sine Wave
	Efficiency(AC Mode)		>99%
Battery	Battery  Type	VRLA Battery	Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
	Max AC Charging Current		60A	40A	60A	60A	80A
	Max PV Charging Current (Built-in MPPT controller model)		80A	60A	100A	100A	150A
	Charging method		constant current, constant voltage, floating charge
Transfer Time			≤4ms
Display			LCD+LED
Communication(Optional)			RS485/APP(WIFI monitoring or GPRS monitoring)
