Product Description

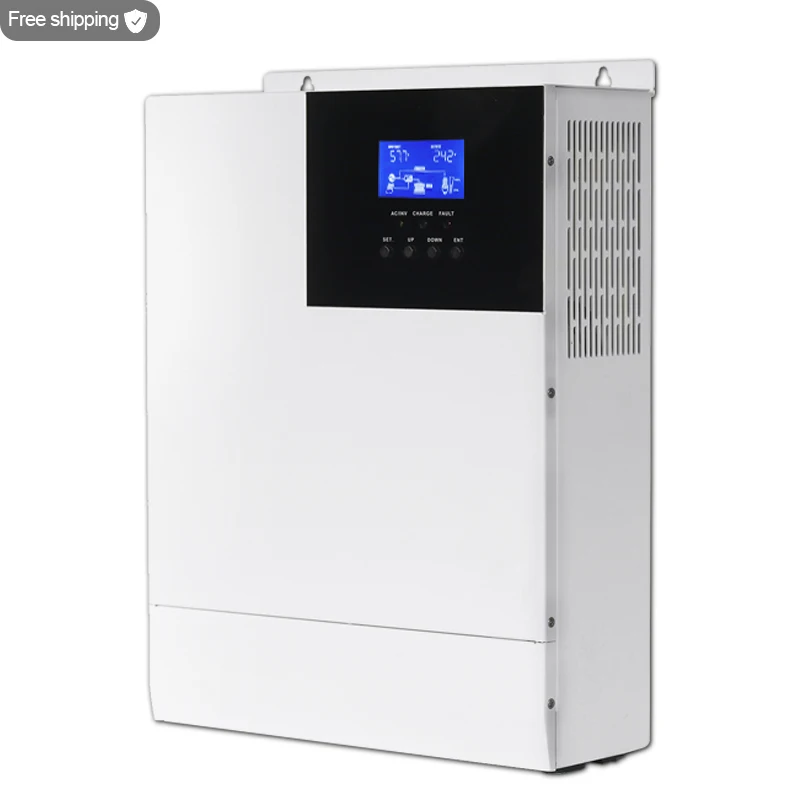

MLV 3KW-U Blue Sun Solar MPPT 3 Phase Hybrid Solar Inverter 3.5kw Multiple Parallel Connection Updated 5kw
|
Models
|
MLV3KW-U
|
|
AC mode
|
|
|
Rated input voltage
|
110/120VAC
|
|
Input voltage range
|
(90Vac-140Vac)±2%
|
|
Frequency
|
50Hz/ 60Hz (Auto detection)
|
|
Frequency Range
|
47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
|
|
Overload/short circuit protection
|
Circuit breaker
|
|
Efficiency
|
>95%
|
|
Conversion time (bypass and inverter)
|
10ms (typical)
|
|
AC reverse protection
|
Available
|
|
Maximum bypass overload current
|
40A
|
|
Inverter mode
|
|
|
Output voltage waveform
|
Pure sine wave
|
|
Rated output power (VA)
|
3000W
|
|
Rated output power (W)
|
3000W
|
|
Power factor
|
1
|
|
Rated output voltage (Vac)
|
120VAC
|
|
Output voltage error
|
±5%
|
|
Output frequency range (Hz)
|
50Hz ± 0.3Hz/60Hz ± 0.3Hz
|
|
Efficiency
|
>92%
|
|
Overload protection |
102%
<load</load (110% <load</load Load >125% ±10%: report error and turn offthe output after 5 seconds; |
|
Peak power
|
4500VA
|
|
Loaded motor capability
|
2HP
|
|
Output short circuit protection
|
Circuit breaker
|
|
Bypass breaker specifications
|
40A
|
|
Rated battery input voltage
|
24V (Minimum starting voltage 22V)
|
|
Battery voltage range |
20.0Vdc~33Vdc±0.6Vdc(Undervoltagealarm/shutdownvoltage/overvoltagealarm overvoltage recovery… settable on LCD screen)
|
|
Power saving mode
|
Load≤25W
|
|
AC charging
|
|
|
Battery type
|
Lead acid or lithium battery
|
|
Maximum charge current
|
60A
|
|
Charge current error
|
± 5Adc
|
|
Charge voltage range
|
18.0Vdc~33Vdc
|
|
Short circuit protection
|
Circuit breaker and blown fuse
|
|
Circuit breaker specifications
|
40A
|
|
Overcharge protection
|
Alarm and turn off charging after 1 minute
|
|
PV charging
|
|
|
Maximum PV open circuit voltage
|
100VDC
|
|
PV operating voltage range
|
30-100VDC
|
|
MPPT voltage range
|
30-95VDC
|
|
Battery voltage range
|
18-33VDC
|
|
Maximum output power
|
1600W
|
|
PV charging current range (can be set)
|
60A
|
|
Charging short circuit protection
|
Blown fuse
|
|
Wiring protection
|
Reverse polarity protection
|
|
Certified specifications
|
|
|
Certification
|
CE(IEC/EN62109-1,-2)ROHS2.0
|
|
EMC certification level
|
EN61000
|
|
Operating temperature range
|
-15°C to 55°C
|
|
Storage temperature range
|
-25°C ~ 60°C
|
|
Humidity range
|
5% to 95% (Conformal coating protection)
|
|
Noise
|
≤60dB
|
|
Heat dissipation
|
Forced air cooling, variable speed of fan
|
|
Communication interface
|
USB/RS485(WiFi/GPRS)/Dry node control
|
|
Size (L*W*D)
|
378mm*280mm*103mm
|
|
Weight (kg)
|
6.2
|
