Product Description
Specification
|
MODEL WI-****
|
500W
|
700W
|
1000W
|
1500W
|
|||||
|
Rated power
|
500W
|
700W
|
1000W
|
1500W
|
|||||
|
Battery voltage
|
12/24VDC
|
||||||||
|
Net weight
|
6KG
|
8KG
|
9KG
|
11KG
|
|||||
|
Grost weight
|
7KG
|
9KG
|
10KG
|
12KG
|
|||||
|

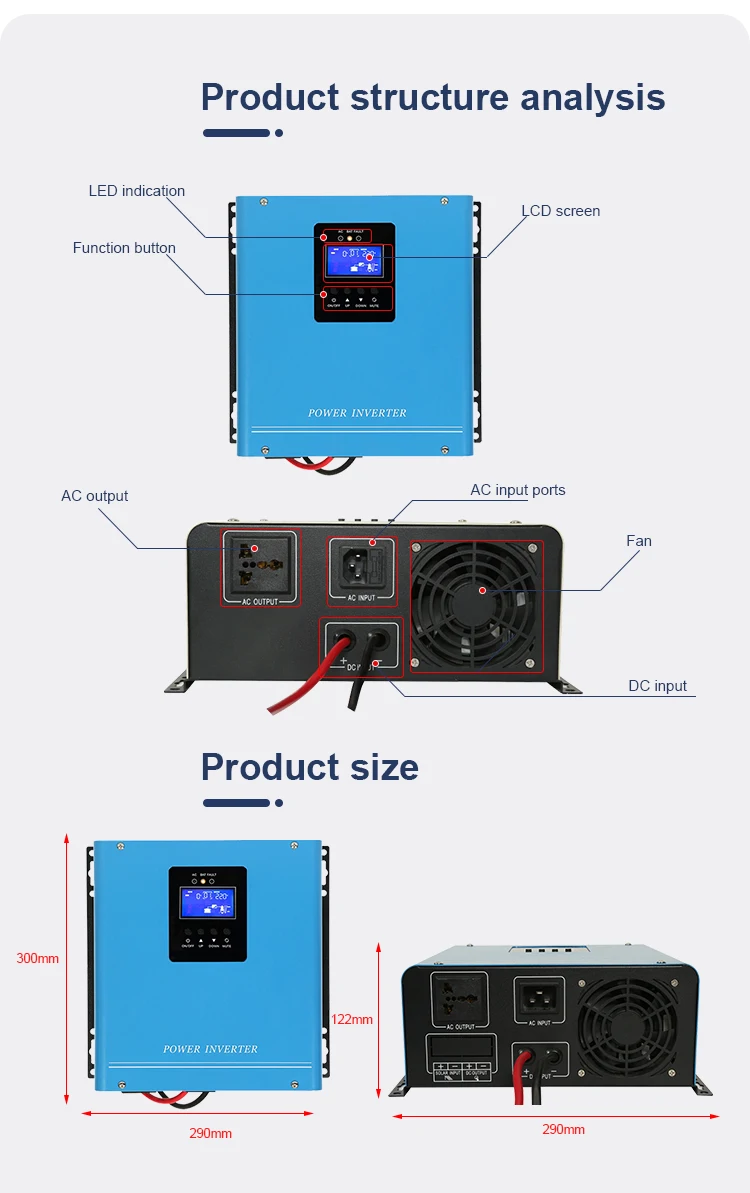

Dimension(L*W*H)
|
290*300*122(mm)
|
||||||||
|
inverter
|
AC luput voltage range(VAC)
|
100/110/120/127/220/230/240V(+20%,-20%)
|
|||||||
|
Iuput frequency(Hz)
|
45-65Hz
|
||||||||
|
Output voltage range(VAC)
|
Inverter mode 100/110/120/127/220/230V240V(+2%,-2%)
|
||||||||
|
Utility output voltage range
|
constant voltage output 100/110/120/127/220/230V240VAC±10%
|
||||||||
|
Output frequency (Hz)
|
50Hz/ 60Hz automatic tracking
|
||||||||
|
Output wavefrom
|
Pure sine wave
|
||||||||
|
Efficiency
|
≥85%
|
||||||||
|
THD
|
≤3%
|
||||||||
|
Transfer time(ms)
|
≤4ms
|
||||||||
|
Overload protection
|
rated power >110%; >130%, 10S power off; >150%, 0.6s power off
|
||||||||
|
Temperature protection
|
≥85℃ alarm,≥90℃ Shutdown the machine
|
||||||||
|
Battery protection
|
Automatic detection and discharge protection, overcharge protection,intelligent management
|
||||||||
|

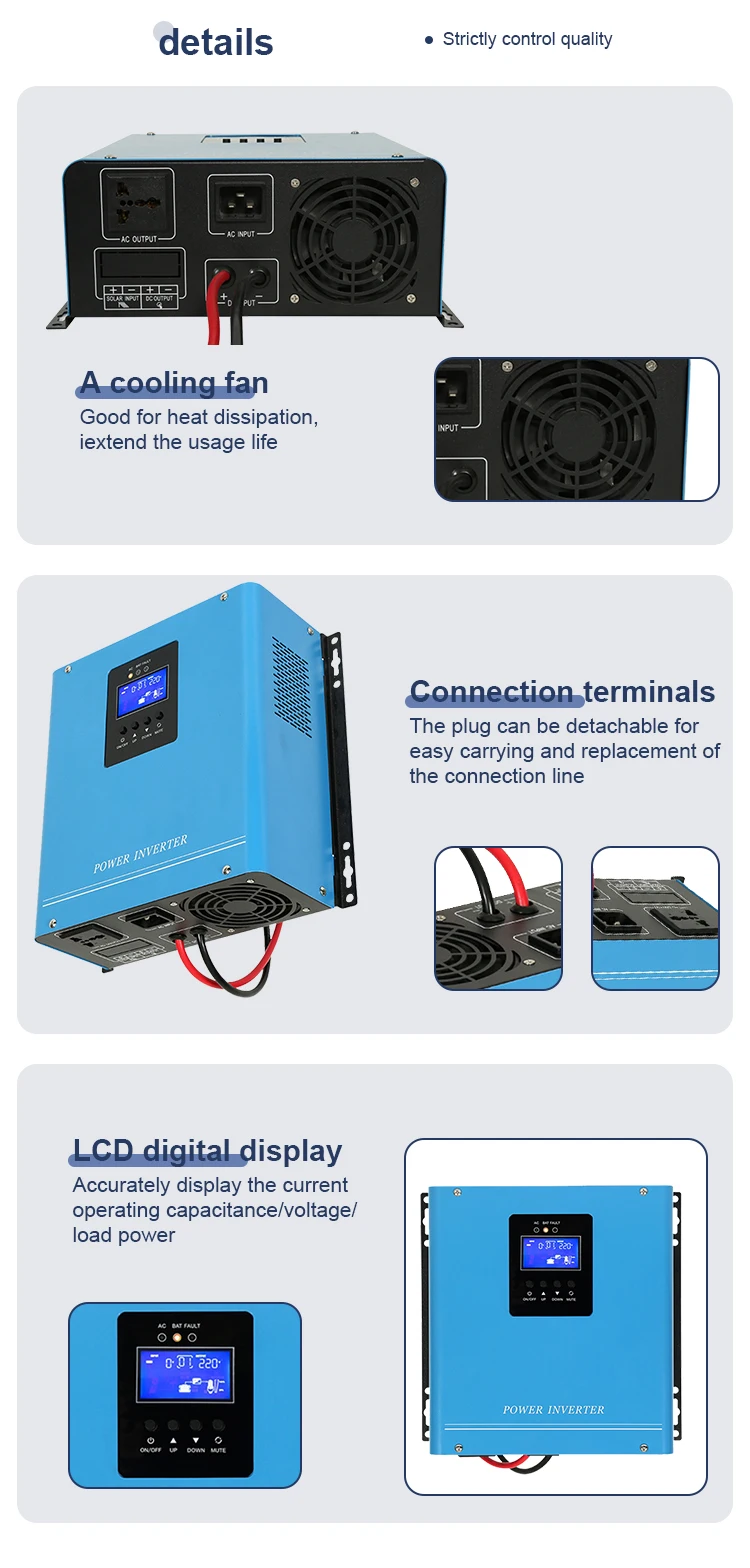

Cooling method
|
Automatic detection of wind cooling ≤42℃ fan rotating heat dissipation, ≥50°C fan high rotating heat dissipation
|
||||||||
|
Display
|
LCD (inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage,etc.)
|
||||||||
